Handheld Drone Detector with High Sensitivity and Long Battery Life for UAV Detection LDKW07 Lightweight drone detection anti drone system

Miejsce pochodzenia	Guangdong, Chiny
Nazwa handlowa	LDSK
Numer modelu	LDSKWK07
Minimalne zamówienie	1
Cena	$400
Szczegóły pakowania	KARTON
Czas dostawy	1 robocze
Zasady płatności	D/A, D/P, T/T, Western Union, Moneygram, PayPal
Możliwość Supply	50000PCS miesięcznie

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

Szczegóły Produktu

Pasmo częstotliwości wykrywania	300 MHz – 6200 MHz	Promień wykrywania	≥ 1 km (typowe warunki)
Czas odpowiedzi	3 ~ 5s	Czas wytrzymałości	3 ~ 4H
Atrakcja	Urządzenie do wykrywania dronu 6000 MHz, urządzenie do wykrywania anty -dronów do noszenia	Tryby alarmu	Słuchawki, alarm dźwiękowy i świetlny
Pojemność dziennika alarmów	≥ 500 rekordów alarmowych	Żywotność baterii	≥ 6 godzin (pojedyncza bateria)
Podkreślić	handheld drone detector with high sensitivity , lightweight drone detection system , UAV detector with long battery life

Zostaw wiadomość

opis produktu

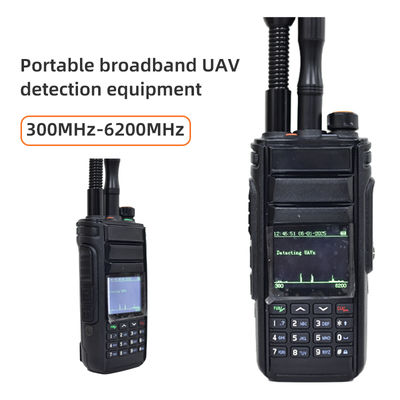

LDKW07 Handheld Drone Detector/Drone detection — 300–6200 MHz FPV & DJI & Autel & racing drone UAV Detection System

Product Overview

The LDKW07 Portable Broadband UAV Detection Equipment is a lightweight, highly integrated drone detector built for rapid, reliable detection of mainstream rotary-wing drones (DJI, Docom) and DIY FPV drones. It passively scans a very wide frequency range (300 MHz–6200 MHz), supports multi-channel simultaneous scanning with dual antennas, and delivers fast detection, high sensitivity, long range, and a low false-alarm rate — all in a compact, easy-to-use package.

Key Benefits (Why choose LDKW07)

Wideband coverage: detects both OFDM HD image transmission and FM analog FPV transmissions across 300–6200 MHz.
Long detection distance: reliably detects drones at ≥1 km under typical conditions.
High sensitivity: detection sensitivity better than -96 dBm for weak signals.
Portable and durable: light (≈500 g) with removable lithium battery and type-C charging — 6+ hours runtime per battery.
Fast, flexible scanning: default scanning, key frequency band scanning, and user-defined feature library.
Low false alarms: multi-channel scanning + dual antenna design reduces false positives.
Easy records & export: alarm log (≥500 records) and firmware/feature updates via MicroUSB.
Multi-language UI: English, Chinese, Russian.

Main Functions & Features

Passive UAV detection: Identifies OFDM HD image transmission used by mainstream consumer drones and FM analog image transmission used by many FPV systems.
Multi-mode scanning: Default mode, key band scan, and custom feature-library scanning (user can modify/add via USB).
Real-time spectrum display: Visualize signal strength across 300–6200 MHz.
Alarm methods: Headphone alarm, external sound & light alarm; headphone audio output supported.
Data & upgrade: Alarm log export and firmware upgrade via MicroUSB.
Field usability: Low power consumption design, compact dimensions, and easy operation for security teams or mobile patrols.

Technical Specifications

Item	Description
Model	LDKW07
Receiving Frequency Range	300 MHz – 6200 MHz
Detectable Signal Types	OFDM HD image transmission and FM analog image transmission (FPV)
Detection Distance	≥ 1 km (typical conditions)
Detection Sensitivity	Better than -96 dBm
Alarm Modes	Headphones, sound and light alarm
Alarm Log Capacity	≥ 500 alarm records
Upgrade / Data Export Interface	MicroUSB
Power Supply	Removable lithium battery (Type-C charging)
Battery Life	≥ 6 hours (single battery)
Display Interface	Built-in screen, supports English/Chinese/Russian
Operation Modes	Default scan / Key frequency scan / Custom frequency scan

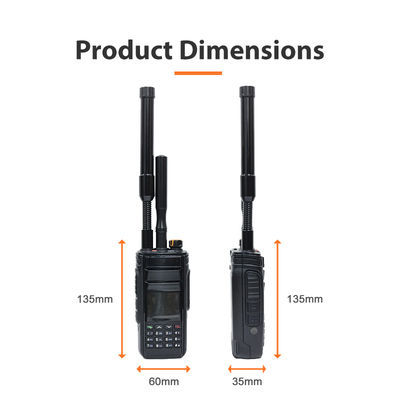

Dimensions (Host)	135 × 60 × 35 mm (excluding antenna)
Weight	≈ 500 g (including one battery)
Working Temperature	-10°C to +55°C
Storage Temperature	-20°C to +60°C
Humidity	≤ 90% RH (non-condensing)
