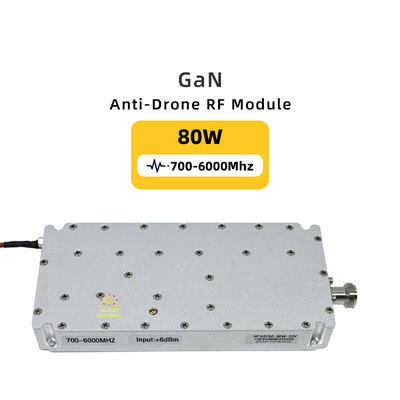

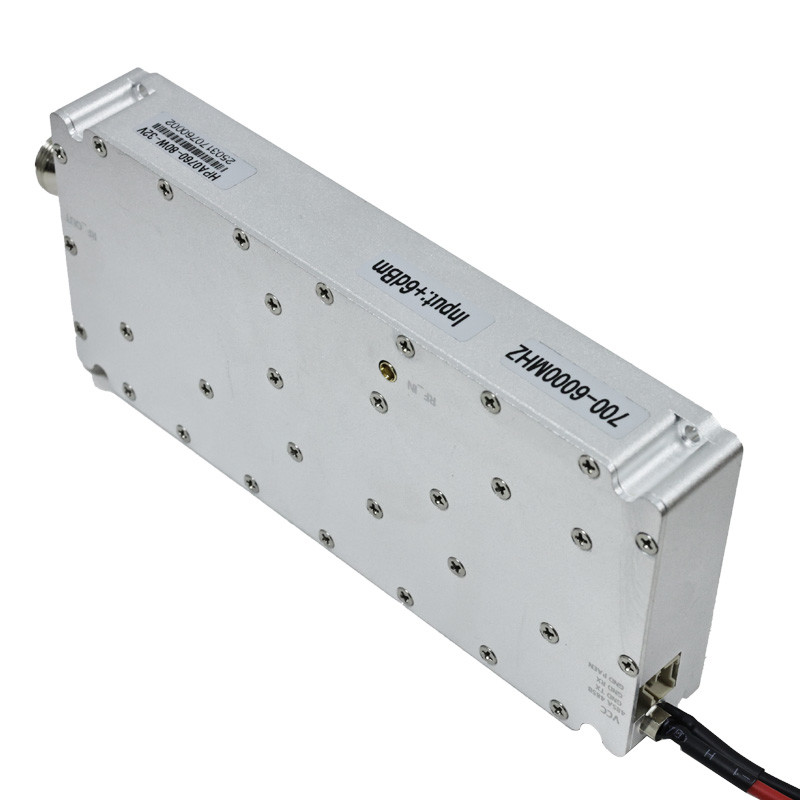

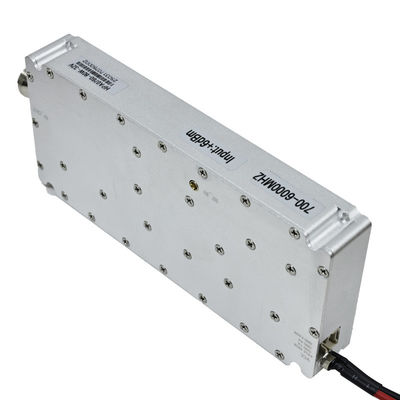

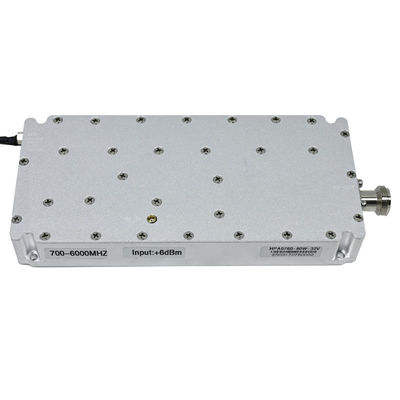

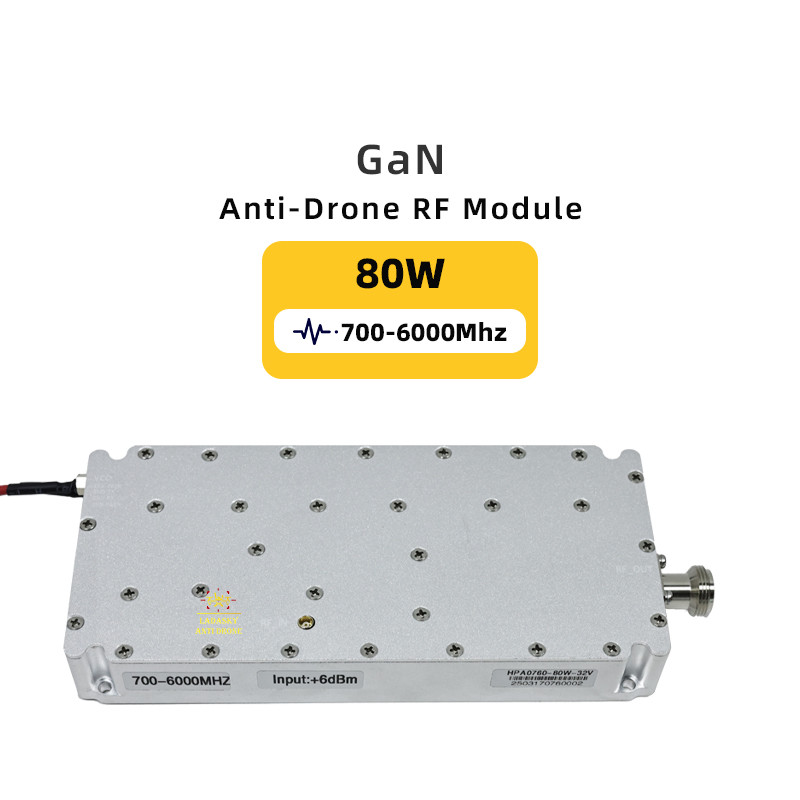

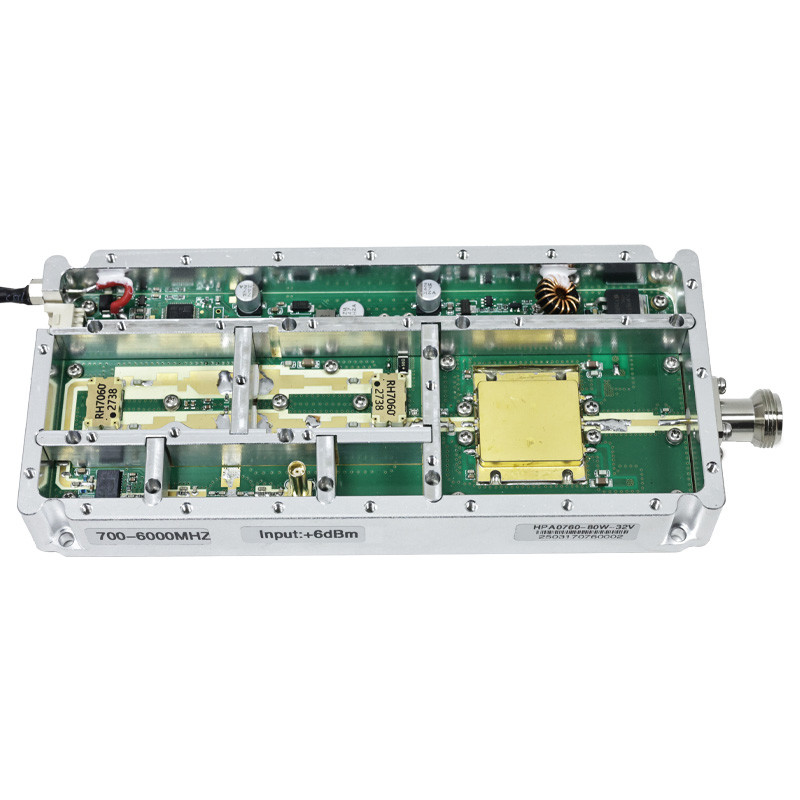

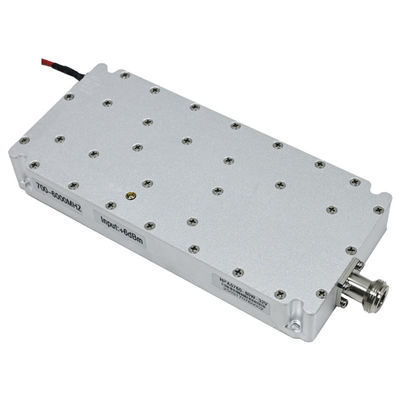

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier

MOQ:	1 sztukę
Okres dostawy:	1-3 dni robocze
metoda płatności:	D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Wydajność dostaw:	50000 pcs per month

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia

Guangdong, Chiny

Nazwa handlowa

LDSK

Model NO.:

LDSK

Waga produktu:

24-32V

Frequency:

700-6000MHz

Power:

80W

Size:

170*77*24.5mm (Excluding Connectors)

Samples:

US$ 1330/Piece

Customization:

Available | Customized Request

Minimalne zamówienie:

1 sztukę

Czas dostawy:

1-3 dni robocze

Zasady płatności:

D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability:

50000 pcs per month

Opis produktu

Product Parameters

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 600-700MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 600-700MHz 50W power amplifier module.

Item name	Technical parameters
Working frequency	700-6000MHz
Power	80W
Supply Voltage	DC 24-32V
Max Output Power	50 dBm
Working Efficiency	≥50%
Passband Riplpe	≤2dB
Weight	900g
Operating Temperature	-10~+55ºC
Power supply requirements	≥10A
RF Connector	N output, SMA input
Size	1777724.5mm (Excluding N )
Connect line red	DC24-32V
Connect line black	GND
Connect line white	ENABLE

Product Description

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 0

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 1

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 2

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 3

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 4

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 5

Lead time

Quantity(PCS)	<100pcs	<500	500-1000	>1000
Lead time(Days)	3	3-5	7-12	To be negotiated

Customization

Item	Logo	Frequency	Power	Packing
MOQ(PCS)	1	1	1	1

Company profile

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 6

Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.

Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.

We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field. They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.

Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards. This ensures that every product leaving our factory is of the highest quality and reliability.

Packing and Delivery

Selling Units:	Single item
Single package size:	20X10X5 cm
Single gross weight:	0.2kg
Package Type:	Each piece is individually packed into a bag and then packed into a carton.
